Solder Station Protection: Introduction

Sometimes I forgot to turn off my soldering station. As this might create dangerous situations I needed a solution. This made me decide to build a timer device: to activate the soldering station a button has to be pressed. This closes a relay for a certain amount of time (30 minutes).

I have based my system on the Velleman timer kit K2579, but with some modifications. The next pages will describe the complete project.

  1. BASIC SYSTEM
  2. REQUESTED EXTENSIONS
  3. SCHEMATIC DESIGN
  4. PRACTICAL REALIZATION

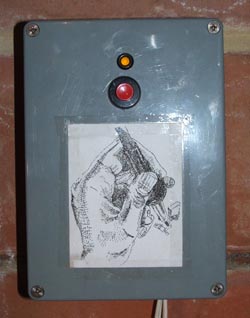

Picture of the assembled soldering station protection
